HL-W-RGB20/30

Overview

Parameter	HL-W-RGB20W	HL-W-RGB30W
Laser Source	Japan imported RGB laser diodes (Osram GEN5)
Optical Power	• Red: >6W@638nm • Green: >6W@520nm • Blue: >8W@445nm • Total: >20W	• Red: >6W@638nm • Green: >8W@520nm • Blue: >10W@445nm • Total: >30W
Electrical Specs	• Input: AC 90-240V 50/60Hz • Consumption: ≤350W	• Input: AC 90-240V 50/60Hz • Consumption: ≤500W
Galvo System	40Kpps high-speed scanner (±30° optical angle) • 16-bit DAC resolution • Linear distortion: <2% (EN 62115)
Control Protocol	Auto-run/DMX512/Master-Slave/Ethernet • Pangolin FB4 compatible • RDM supported (15CH)
Connectors	• IP65 XLR-5 (DMX) • IP65 RJ45 (Ethernet)
Mechanical Specs	• Dimensions: 358×450×220mm • Net weight: 20kg	• Dimensions: 466×541×239mm • Net weight: 35kg
Certifications	• CE/EMC/LVD certified • Patented beam shaping (ZL2023 2 234567.8)
Program Library	• 50+ preloads: Landmark beams/Time tunnel effects • Custom ILDA frame conversion

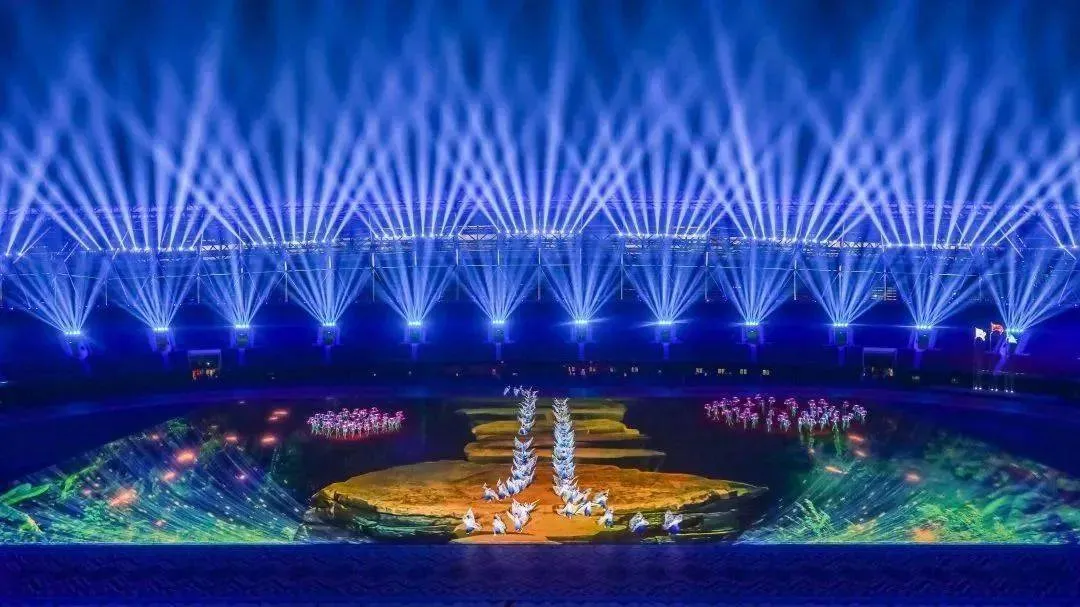

Applications	Stage lighting, Architectural contouring, Event productions (EN 60598 compliant)
Environmental Specs	• IP65 (IEC 60529) • Operating temp: -20°C ~ 50°C
